The Complete Guide to Dim-to-Warm LED Lighting

Author:Admin Publish time: July 20, 2026 Origin: Site

Lighting is not only about visibility.

In decorative and architectural lighting, it also influences how a space feels, how materials appear, and how people experience an interior.

This is especially important in restaurants, hotels, luxury residences, lounges, boutiques, and other environments where atmosphere matters as much as illumination.

Dim-to-Warm LED technology was developed to create a more natural dimming experience. Instead of only reducing light output, a Dim-to-Warm lamp also becomes warmer in color as it dims.

For designers and luminaire manufacturers working with compact decorative fixtures, G4 and G9 miniature LED lamps make it possible to introduce this effect into chandeliers, wall lights, pendants, table lamps, and other small luminaires.

This guide explains:

What Dim-to-Warm lighting is
How it differs from conventional dimming
Why it matters in decorative lighting
How G4 and G9 miniature lamps are used
Which technical factors affect performance
How to select a suitable lamp and dimmer combination
Which problems should be checked before production

1. What Is Dim-to-Warm Lighting?

Dim-to-Warm, sometimes called warm dimming or warm glow dimming, is an LED lighting technology that changes both:

Brightness
Correlated color temperature

As the lamp is dimmed, the light gradually becomes warmer.

A common Dim-to-Warm range may be:

3000K at full brightness to approximately 2200K at low brightness
2700K at full brightness to approximately 1800K at low brightness

At full output, the light is bright and functional.

At lower output, it becomes softer, warmer, and more atmospheric.

This behavior is designed to reproduce the visual experience of traditional incandescent or halogen lamps, which naturally become warmer as their filament temperature decreases.

Standard dimmable LEDs usually reduce lumen output while maintaining almost the same color temperature.

Dim-to-Warm LEDs change the mood of the light as well as its brightness.

2. Why Does Warm Dimming Feel More Natural?

People do not experience light only through measured brightness.

We also respond to color temperature, contrast, shadow, material appearance, and the relationship between the light and the surrounding environment.

Cooler or neutral warm light is often useful when people need:

Visibility
Activity
Product evaluation
Functional illumination

Warmer light is more commonly associated with:

Relaxation
Hospitality
Evening environments
Candlelight
Firelight
Traditional filament lamps

When a standard LED is dimmed, the space becomes darker, but the color of the light may remain relatively unchanged.

This can sometimes feel visually flat or unnatural, especially in decorative environments.

With Dim-to-Warm lighting, the light becomes warmer as the brightness falls. The visual atmosphere therefore changes in a way that feels more familiar and emotionally comfortable.

For lighting designers, this makes Dim-to-Warm more than a lamp feature.

It becomes a tool for shaping the experience of a space.

3. Dim-to-Warm vs Standard Dimming

The difference is simple but important.

Standard Dimmable LED

A standard dimmable LED generally:

Reduces brightness
Maintains a relatively stable color temperature
Provides functional dimming
May be suitable for offices, kitchens, corridors, or general lighting

Dim-to-Warm LED

A Dim-to-Warm LED:

Reduces brightness
Gradually lowers the color temperature
Creates a warmer atmosphere
Better reproduces incandescent-style dimming
Is especially suitable for hospitality and decorative lighting

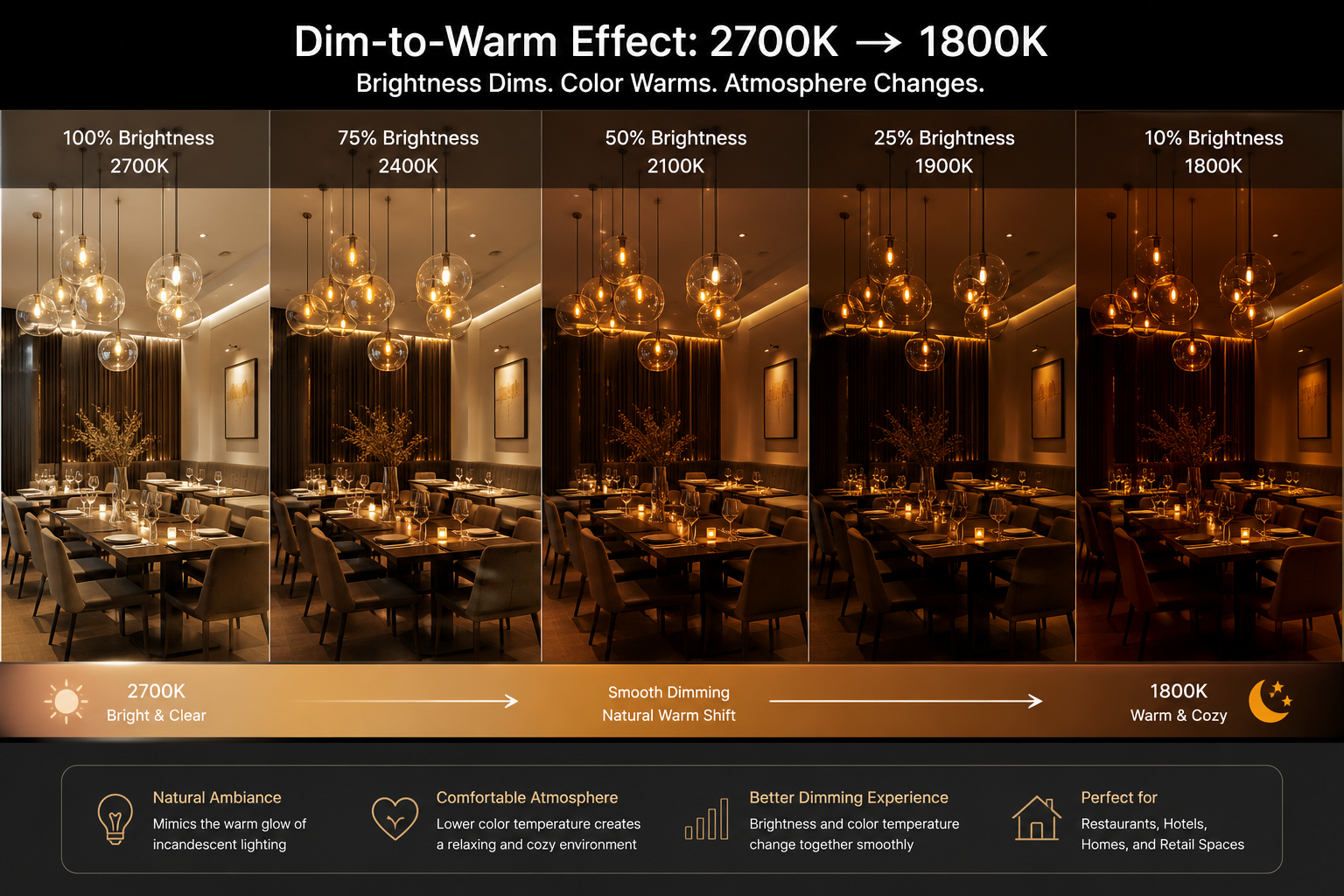

For example, a standard 2700K LED may remain close to 2700K throughout the dimming range.

A 2700K-to-1800K Dim-to-Warm lamp may begin around 2700K at full output and gradually move toward 1800K as it is dimmed.

The result is not only less light.

It is a different lighting experience.

4. Dim-to-Warm vs Tunable White

Dim-to-Warm and tunable white are sometimes confused, but they are designed for different purposes.

Dim-to-Warm

Dim-to-Warm links brightness and color temperature together.

When the lamp is dimmed:

The light output decreases
The color temperature becomes warmer

The user normally controls the effect through a conventional compatible dimmer.

It is simple, intuitive, and well suited to decorative lighting.

Tunable White

Tunable white allows brightness and color temperature to be controlled independently.

The user may select:

A warmer color temperature
A cooler color temperature
A higher or lower brightness level

Tunable white generally requires a more complex control system, additional channels, or digital control protocols.

Which Is Better?

Neither technology is universally better.

Dim-to-Warm is often more suitable when the objective is:

Simple wall-dimmer control
Incandescent-style dimming
Warm evening ambiance
Decorative luminaires
Retrofit applications
Compact G4 or G9 lamp formats

Tunable white is more suitable when the project requires:

Independent CCT control
Circadian lighting strategies
Automated scene control
Smart building integration
Complex architectural lighting systems

For many decorative lighting brands, Dim-to-Warm provides the desired emotional effect without adding unnecessary system complexity.

5. Why G4 and G9 Matter in Decorative Lighting

G4 and G9 lamps are widely used in compact decorative luminaires because of their small size and flexibility.

They are often installed inside:

Chandeliers
Pendant lights
Wall sconces
Table lamps
Floor lamps
Decorative glass fixtures
Crystal lighting
Sculptural luminaires
Hotel bedside lamps
Small enclosed luminaires

These fixtures often have limited internal space.

The light source may need to fit behind glass, inside a narrow shade, or within a compact decorative structure.

This is why miniature LED design is not simply a smaller version of a standard LED lamp.

It requires careful control of:

Physical dimensions
Heat dissipation
Driver size
LED layout
Optical distribution
Dimming performance
Electrical compatibility
Color consistency

When Dim-to-Warm technology is added, the design becomes even more demanding.

The lamp must coordinate multiple LED channels, power control, temperature management, and dimming behavior inside a very small housing.

6. G4 Dim-to-Warm LED Lamps

G4 lamps normally use two straight pins with a 4 mm pin spacing.

They are commonly associated with low-voltage lighting systems, especially 12V applications.

Typical G4 applications include:

Decorative chandeliers
Under-cabinet fittings
Marine and caravan lighting
Compact wall lights
Small table lamps
Display lighting
Landscape luminaires
Crystal fixtures

Advantages of G4 Dim-to-Warm Lamps

A G4 Dim-to-Warm LED can offer:

Compact dimensions
Low-voltage operation
Warm atmospheric dimming
Lower energy use than halogen
Longer operating life
Reduced surface temperature compared with traditional halogen lamps
Compatibility with compact decorative fixtures

Important Considerations for G4

G4 systems can be more complicated than they appear.

The final performance may depend on:

AC or DC input
Electronic transformer behavior
Minimum transformer load
Output waveform
PWM dimming frequency
Transformer and dimmer interaction
Lamp quantity on the circuit
Cable length and voltage drop

A lamp that works correctly with one 12V transformer may perform differently with another.

For this reason, G4 Dim-to-Warm products should be evaluated as part of a complete system rather than as an isolated lamp.

7. G9 Dim-to-Warm LED Lamps

G9 lamps use loop-shaped pins and are typically connected directly to mains-voltage systems, depending on regional product design.

They are widely used in decorative residential and hospitality luminaires.

Typical applications include:

Chandeliers
Wall sconces
Glass pendants
Table lamps
Ceiling fixtures
Hotel room lighting
Decorative multi-lamp fittings
Small enclosed luminaires

Why G9 Is Important for Dim-to-Warm

Many decorative luminaires were originally designed around halogen G9 capsules.

Halogen G9 lamps offered:

Small size
Omnidirectional light
High color rendering
Smooth dimming
A naturally warmer appearance when dimmed

Replacing this experience with LED has not always been easy.

Some standard G9 LED lamps may save energy but create new problems:

Larger dimensions
Poor fit inside the luminaire
Harsh or uneven light
Limited dimming range
Flicker
Sudden shut-off at low levels
Inconsistent color between lamps

A well-designed G9 Dim-to-Warm lamp aims to preserve the emotional quality of halogen while improving energy efficiency and service life.

8. Where Dim-to-Warm G4 and G9 Lamps Are Most Valuable

Dim-to-Warm is not necessary in every application.

Its value is greatest when lighting is expected to support atmosphere, comfort, and visual quality.

Restaurants

Restaurants often use different lighting levels throughout the day.

At higher output, staff need sufficient light for preparation and early service.

Later in the evening, lower and warmer lighting can create:

A more intimate atmosphere
Better visual comfort
A slower, more relaxed dining experience
A stronger premium impression

G9 Dim-to-Warm lamps are particularly useful in decorative pendants and wall lights.

Hotels

Hotel guests expect lighting to serve multiple purposes.

A room may need brighter light for:

Arrival
Packing
Reading
Cleaning

The same room may later need softer light for:

Relaxation
Evening use
Bedside ambiance

Dim-to-Warm allows the lighting to move naturally between these functions.

Luxury Residential Lighting

In homes, Dim-to-Warm is especially effective in:

Living rooms
Bedrooms
Dining rooms
Reading corners
Entrance halls
Decorative chandeliers

The user can keep higher output for daily activity and create warmer light for the evening without changing fixtures.

Boutique Retail

Luxury retail lighting must present products attractively while maintaining a distinctive atmosphere.

Warm dimming can support:

Brand identity
Premium material appearance
Comfortable browsing
Evening retail environments

However, color rendering and spectral quality must be carefully controlled so that products remain visually accurate.

Bars and Lounges

Bars, lounges, and entertainment spaces often benefit from very warm low-level lighting.

A Dim-to-Warm range extending toward 1800K can help create a candle-like or firelight atmosphere while maintaining the convenience of electric lighting.

9. The Importance of High CRI

Color rendering is particularly important in decorative and hospitality lighting.

A high Color Rendering Index helps colors appear more natural and visually rich.

This affects:

Skin tones
Wood
Fabric
Food
Artwork
Interior finishes
Decorative metals
Furniture
Retail products

A nominal CRI value alone does not explain everything, but it remains a useful starting point.

For premium decorative applications, many designers prefer:

CRI 90+
CRI 95+
Strong saturated red performance
Consistent color across production batches

Why R9 Matters

R9 measures the rendering of saturated red tones.

It is important for:

Skin
Food
Wood
Textiles
Warm interior finishes

Two lamps may both be labeled CRI 90 while showing noticeably different red rendering.

For hospitality and high-end residential projects, R9 should therefore be reviewed together with general CRI.

CRI Throughout the Dimming Curve

For Dim-to-Warm lamps, color quality should not only be checked at full brightness.

It should also be evaluated at:

High output
Mid-level output
Low output

Because the lamp uses different LED channels or channel proportions during dimming, the color rendering performance may change across the curve.

A good Dim-to-Warm design should maintain acceptable color quality throughout the useful dimming range.

10. Color Consistency: SDCM and DUV

When several G4 or G9 lamps are installed in the same chandelier or decorative fixture, small color differences can become obvious.

This is particularly noticeable:

On white walls
Behind clear glass
In multi-arm chandeliers
At low dimming levels
When lamps are positioned close together

SDCM

SDCM describes how closely the color of different lamps matches.

A lower SDCM value generally indicates tighter color consistency.

For premium projects, designers may request:

SDCM 3 or below
Tighter production binning
Batch consistency control

DUV

DUV indicates whether the light appears above or below the black body locus.

In practical terms, it can influence whether the light appears:

Slightly greenish
Neutral
Slightly pinkish

Even when two lamps have a similar CCT, a DUV difference can make them look visibly different.

For high-end decorative lighting, both CCT and DUV should be controlled.

11. Flicker in Dim-to-Warm Lighting

Flicker is one of the most common problems in dimmable LED systems.

Visible flicker may be obvious to the user, but even less noticeable modulation can affect visual comfort or camera performance.

Potential symptoms include:

Light instability
Pulsing
Shimmering
Camera banding
Flicker at low brightness
Flashing during start-up
Repeated on-off cycling

What Causes Flicker?

Flicker may result from:

Dimmer incompatibility
Unstable driver design
Insufficient minimum load
Poor waveform interpretation
Transformer interaction
Low-quality power supply
Control instability at low dimming levels
Incorrect lamp quantity on the circuit

Dim-to-Warm lamps can be more sensitive because the driver must control both dimming level and LED channel balance.

Useful Flicker Metrics

Two commonly referenced metrics are:

PstLM
SVM

These metrics evaluate different aspects of temporal light modulation.

However, laboratory values should always be considered together with real application testing.

A lamp may perform well on one dimmer and poorly on another.

Compatibility testing remains essential.

12. Lamp and Dimmer Compatibility

The lamp is only one part of a dimming system.

The final result depends on the interaction between:

Lamp
Internal LED driver
Dimmer
Transformer, where applicable
Number of lamps
Circuit load
Wiring conditions
Supply voltage

This explains why a lamp may dim smoothly on one installation but behave differently on another.

Common Compatibility Problems

Designers and luminaire brands may encounter:

Flicker at low output
A very short dimming range
Sudden switch-off
Delayed start-up
Lamps that remain faintly illuminated when switched off
Audible noise
Inconsistent behavior between batches
Different behavior when the number of lamps changes

Leading-Edge and Trailing-Edge Dimming

Many mains-voltage dimmers use phase-cut control.

The two common types are:

Leading-edge dimming
Trailing-edge dimming

Traditional incandescent loads were generally easy to dim.

LED lamps have electronic drivers, which create a more complex load.

Some LED lamps work better with trailing-edge dimmers. Others are designed to support broader phase-cut compatibility.

The most reliable approach is to test the actual lamp and dimmer combination intended for the project.

Why Lamp and Dimmer Should Be Tested Together

A lamp can be described as dimmable without being compatible with every dimmer.

Likewise, a dimmer can be described as LED-compatible without working perfectly with every lamp.

The final performance depends on the complete combination.

This is why manufacturers with experience in both LED lamps and LED dimmers can provide additional value.

They can evaluate:

Start-up behavior
Minimum dimming level
Flicker
Shut-off behavior
Load range
Multi-lamp stability
Dimming curve
Color transition

For premium projects, this system-level approach is much more reliable than evaluating only an individual component.

13. What Makes a Good Dim-to-Warm Curve?

A good Dim-to-Warm lamp should not simply switch between two color temperatures.

The transition should feel gradual and natural.

Smooth CCT Transition

The light should move progressively from the full-output CCT toward the low-output CCT.

Sudden color jumps can make the dimming effect feel artificial.

Coordinated Brightness and Color

The color change should correspond naturally with the reduction in brightness.

If the light becomes too warm too early, the fixture may look orange while still very bright.

If the color changes only at the very end, the warm-dimming effect may be difficult to notice.

Stable Low-Level Dimming

Low dimming levels are where many LED systems fail.

A good lamp should avoid:

Flicker
Sudden cut-off
Repeated restart
Unstable color
Large differences between lamps

Repeatable Performance

The same dimmer position should produce a similar result each time.

This is particularly important in:

Hotels
Restaurants
Showrooms
Multi-lamp chandeliers
Repeated luminaire installations

14. 2700K-to-1800K vs 3000K-to-2200K

Different Dim-to-Warm ranges create different visual effects.

2700K to 1800K

This range provides a stronger warm-dimming effect.

It is well suited to:

Restaurants
Bars
Bedrooms
Lounges
Luxury residential projects
Decorative chandeliers
Candle-like environments

At low output, approximately 1800K can produce a very warm amber appearance.

3000K to 2200K

This range remains slightly cleaner and more neutral.

It may be suitable for:

Hotels
Contemporary residential interiors
Boutiques
Higher-end general lighting
Projects requiring a balance of function and atmosphere

How to Choose

The decision should be based on:

Interior materials
Fixture design
Desired mood
Application
Regional lighting preference
Required full-output CCT
Expected low-level appearance

It is better to compare real samples inside the intended luminaire than to select only from numerical specifications.

15. Thermal Management in G4 and G9 Lamps

Heat is one of the biggest engineering challenges in miniature LEDs.

G4 and G9 lamps contain:

LED chips
Driver components
Circuit boards
Insulating materials
Thermal interfaces

All of this must fit inside a very small housing.

Why Heat Matters

Excessive operating temperature can affect:

Light output
Color stability
Driver reliability
Dimming behavior
LED lifetime
Component aging

A lamp may perform well in open air but operate much hotter inside:

A glass enclosure
A small shade
A sealed fitting
A multi-lamp chandelier
A luminaire with limited airflow

Enclosed Fixture Testing

Luminaire manufacturers should test the lamp under realistic conditions.

This includes:

Actual fixture structure
Real lamp quantity
Expected ambient temperature
Long operating periods
Full output
Repeated dimming cycles

Open-air laboratory results alone may not represent the final application.

16. Lamp Size and Fixture Compatibility

A retrofit LED must physically fit the luminaire.

This sounds obvious, but it is a frequent source of project failure.

Important dimensions include:

Overall length
Maximum diameter
Pin spacing
Pin length
Light-emitting area
Distance from the base to the optical center

Why LED Replacements Are Often Larger

An LED lamp needs space for:

Driver electronics
Heat dissipation
Insulation
Multiple LED channels
Protective materials

Dim-to-Warm products may require additional circuitry, making compact design more difficult.

Before specifying a G4 or G9 lamp, designers should confirm:

Available internal space
Glass opening size
Shade depth
Lamp insertion direction
Heat clearance
Whether the lamp is visible through the fixture

For decorative luminaires, the appearance of the lamp itself may also matter.

17. Light Distribution and Visual Appearance

Many traditional halogen capsules emit light in multiple directions.

An LED replacement may have a different distribution.

This can affect:

Sparkle in crystal fixtures
Uniformity behind glass
Shadow patterns
Bright and dark zones
Appearance of decorative materials

For chandeliers and transparent fixtures, the lamp should be evaluated not only by total lumens but also by:

Emitting surface
Beam distribution
Side light
Rear light
Visible LED points
Diffusion
Glare

A lamp with higher lumen output does not automatically create a better fixture.

The correct optical distribution is often more important.

18. How to Specify a G4 or G9 Dim-to-Warm Lamp

A useful project specification should include more than wattage and color temperature.

Recommended information includes:

Electrical

Input voltage
AC or DC operation
Wattage
Power factor, where relevant
Dimming method
Supported dimmer types

Optical

Full-output lumen value
Full-output CCT
Low-level CCT
CRI
R9
SDCM
DUV
Beam or light distribution

Mechanical

Overall dimensions
Pin type
Housing material
Weight
Enclosed fixture suitability

Dimming

Minimum dimming level
CCT transition curve
Tested dimmer list
Lamp quantity per dimmer
Flicker performance
Start-up behavior
Shut-off behavior

Reliability

Thermal test conditions
Aging test
Switching cycles
Relevant certifications
Warranty
Batch consistency

19. Common Mistakes When Selecting Dim-to-Warm Lamps

Mistake 1: Selecting Only by Wattage

Two lamps with the same wattage may differ significantly in:

Lumen output
Heat
Size
Color quality
Dimming behavior
Reliability

Mistake 2: Assuming All Dimmers Are Compatible

“Dimmable” does not mean “compatible with every dimmer.”

Always test the intended combination.

Mistake 3: Testing Only One Lamp

A circuit with one lamp may behave differently from a circuit with:

Three lamps
Six lamps
Ten lamps

The complete fixture load should be tested.

Mistake 4: Ignoring Low-Level Performance

Many problems appear only near the bottom of the dimming range.

Check:

Flicker
Sudden cut-off
Color mismatch
Noise
Restart behavior

Mistake 5: Evaluating Only in Open Air

Compact decorative fixtures can create much higher operating temperatures.

Test inside the real luminaire.

Mistake 6: Choosing the Highest Lumen Output

Decorative lighting is not always about maximum brightness.

The better lamp may be the one with:

Better color
Smoother dimming
More suitable distribution
Lower glare
Better thermal stability

Mistake 7: Ignoring Batch Consistency

A single good sample does not guarantee stable mass production.

Production control should include:

CCT
CRI
SDCM
Wattage
Dimming behavior
Appearance

20. How Luminaire Brands Should Evaluate Samples

A structured sample evaluation is more useful than a simple visual check.

Step 1: Confirm Physical Fit

Install the lamp in the actual luminaire.

Check:

Insertion
Clearance
Glass fit
Lamp visibility
Contact stability

Step 2: Check Full-Output Appearance

Evaluate:

Brightness
Color
Glare
Distribution
Fixture appearance

Step 3: Dim Slowly Through the Full Range

Observe:

Start-up
High-level dimming
Mid-level dimming
Low-level dimming
CCT transition
Flicker
Noise
Sudden cut-off

Step 4: Test Multiple Dimmer Models

Where possible, test:

Leading-edge dimmers
Trailing-edge dimmers
Common regional dimmers
The exact dimmer recommended for the project

Step 5: Test the Actual Lamp Quantity

A chandelier with eight lamps should be tested with eight lamps.

Do not rely only on a single-lamp test.

Step 6: Run a Thermal Test

Operate the luminaire:

At full brightness
For several hours
In the expected installation condition

Check for:

Excessive heat
Color shift
Flicker after heating
Driver instability
Lamp damage

Step 7: Compare Multiple Samples

Test several pieces from the same batch to evaluate consistency.

21. The Role of the Luminaire Manufacturer

Dim-to-Warm performance is not determined only by the lamp supplier.

The luminaire manufacturer also influences the result through:

Fixture enclosure
Ventilation
Wiring
Socket quality
Lamp spacing
Glass design
Recommended dimmer
Maximum lamp quantity

A successful project therefore requires coordination between:

Lighting designer
Luminaire manufacturer
Lamp manufacturer
Dimmer supplier
Project installer

The best results come from testing the entire system before mass production or project installation.

22. Why Miniature Dim-to-Warm LEDs Are Technically Challenging

A G4 or G9 Dim-to-Warm lamp must combine several functions in a very small space.

It must:

Accept the incoming power waveform
Interpret the dimming signal
Control two or more LED channels
Maintain a smooth CCT transition
Avoid flicker
Manage heat
Maintain color quality
Fit inside a miniature housing

There is very little room for:

Driver components
Thermal separation
Optical mixing
Insulation
Protective circuits

This is why miniature Dim-to-Warm products should not be evaluated only by price.

The stability of the design, quality of the components, and depth of compatibility testing directly affect the final user experience.

23. How FRI Approaches G4 and G9 Dim-to-Warm Development

FRI specializes in miniature LED light sources and dimming applications.

Our work focuses on the interaction between:

LED lamp design
Driver design
Color quality
Thermal performance
Dimmer compatibility
Real luminaire conditions

For G4 and G9 Dim-to-Warm projects, our typical evaluation may include:

Physical size confirmation
CCT transition analysis
CRI and R9 testing
SDCM and color consistency control
Dimming range evaluation
Multi-lamp testing
Flicker testing
Thermal testing
Dimmer compatibility testing
Sample comparison inside the customer’s luminaire

Because we work with both miniature LED lamps and LED dimming solutions, we evaluate the performance as a complete system rather than treating the lamp and dimmer as unrelated components.

24. Typical FRI Dim-to-Warm Options

Depending on the product and project requirement, available directions may include:

G4 Dim-to-Warm LED lamps
G9 Dim-to-Warm LED lamps
2700K-to-1800K warm dimming
3000K-to-2200K warm dimming
High CRI options
Compact ceramic structures
Phase-cut dimming solutions
Low-voltage dimming solutions
Custom lumen output
Customized size or optical structure
Project-specific compatibility testing

Final specifications depend on:

Lamp size
Voltage
Wattage
Thermal limits
Dimming method
Required certification
Target market
Luminaire design

25. Questions to Ask Before Starting a Project

Before selecting or developing a Dim-to-Warm G4 or G9 lamp, it is useful to confirm:

Is the lamp G4 or G9?
What is the input voltage?
Is the G4 system AC, DC, or both?
Which dimming method will be used?
Which dimmer models are used in the target market?
How many lamps are installed on one dimmer?
What is the available lamp space?
Is the fixture open or enclosed?
What is the desired full-output CCT?
What is the desired low-level CCT?
What CRI and R9 levels are required?
What is the target lumen output?
Is flicker performance specified?
Is the lamp visible through glass?
Which certifications are required?
Which countries will the product be sold in?
Is a standard product acceptable, or is customization required?

Clear answers reduce development time and improve the chance of successful compatibility.

26. Frequently Asked Questions

Do Dim-to-Warm lamps need a special dimmer?

Not always.

Many Dim-to-Warm lamps are designed to work with compatible conventional phase-cut dimmers. However, compatibility should be verified because not every LED lamp works perfectly with every dimmer.

Can a standard dimmer control both brightness and color?

With Dim-to-Warm lamps, the lamp’s internal driver links brightness and color temperature automatically.

The user normally operates a single dimmer. As brightness decreases, the lamp becomes warmer.

Can G4 Dim-to-Warm lamps work with existing 12V transformers?

Sometimes, but this must be tested.

The result depends on the transformer type, output waveform, minimum load, dimmer, lamp quantity, and circuit conditions.

Are G9 Dim-to-Warm lamps suitable for enclosed fixtures?

This depends on the lamp design and the fixture temperature.

Because G9 fixtures can be compact and enclosed, thermal testing in the actual luminaire is strongly recommended.

Does Dim-to-Warm reduce CRI?

Not necessarily.

A well-designed lamp can maintain high color rendering throughout the dimming curve. However, CRI and R9 should be tested at multiple dimming levels.

Why do several G9 lamps sometimes look different at low brightness?

Possible causes include:

LED bin differences
Driver tolerances
Dimmer instability
Uneven voltage
Different operating temperatures
Poor color mixing

Tight SDCM control and multi-lamp testing can reduce this issue.

What is the best Dim-to-Warm range?

There is no single best range.

2700K-to-1800K creates a stronger, candle-like effect.

3000K-to-2200K provides a cleaner and slightly more contemporary appearance.

The best choice depends on the project.

Is Dim-to-Warm suitable for general lighting?

Yes, but its strongest value is in spaces where atmosphere matters.

For purely functional lighting, a standard dimmable LED may be sufficient.

Can Dim-to-Warm lamps replace halogen lamps directly?

In many cases, yes, but the replacement should be checked for:

Size
Voltage
Transformer compatibility
Dimmer compatibility
Heat
Light distribution
Lumen output

Why does a lamp work with one dimmer but not another?

Different dimmers use different control methods, load ranges, and waveforms.

LED drivers interpret these signals differently, which is why real compatibility testing is necessary.

27. Final Selection Checklist

Before approving a G4 or G9 Dim-to-Warm lamp, confirm:

The lamp fits the fixture
The voltage is correct
The lamp works with the intended transformer
The lamp works with the intended dimmer
The tested lamp quantity matches the real fixture
The Dim-to-Warm transition is smooth
The low-level dimming is stable
Flicker is acceptable
CRI and R9 meet the project requirement
Color consistency is controlled
Thermal performance is acceptable
Light distribution suits the fixture
Required certification is available
Multiple production samples perform consistently

Conclusion

Dim-to-Warm technology allows LED lighting to do more than become brighter or darker.

It enables the character of the light to change with the space.

At full output, the lighting can remain practical and clear.

At lower output, it can become warmer, softer, and more intimate.

For decorative luminaires, G4 and G9 miniature LED lamps provide a compact way to introduce this effect into chandeliers, pendants, wall lights, table lamps, hotel lighting, and luxury residential fixtures.

However, good Dim-to-Warm performance depends on much more than color temperature.

It requires careful coordination of:

Lamp dimensions
LED quality
Driver design
Color rendering
Thermal management
Flicker control
Dimmer compatibility
Transformer compatibility
Luminaire conditions

The most reliable approach is to evaluate the complete lighting system rather than selecting the lamp in isolation.

If you are developing a decorative luminaire using G4 or G9 Dim-to-Warm LED lamps, FRI can support the project with sample evaluation, technical analysis, color-quality testing, dimmer compatibility testing, and customized miniature LED solutions.

Evaluate a G4 or G9 Dim-to-Warm Solution

Share the following information with our team:

Lamp type
Voltage
Available dimensions
Target lumen output
Full and low-level color temperature
CRI requirement
Dimmer model
Transformer model
Lamp quantity
Luminaire photos or drawings
Target market and certification requirements

We can then recommend a standard solution or evaluate whether a customized G4 or G9 Dim-to-Warm lamp is required.
