Why Omnidirectional G9 LEDs Don’t Work for Every Decorative Fixture
Author:Admin Publish time: September 17, 2026 Origin: Site
More light is not always better light. Sometimes the real issue is where the light goes.
For years, the G9 LED has mainly been designed as a compact replacement for the traditional halogen capsule.
That explains why most conventional G9 LEDs follow a similar optical approach: wide light distribution in multiple directions.
For chandeliers, crystal fixtures and transparent decorative lamps, this makes sense. The fixture often relies on light spreading through glass, crystals or shades to create sparkle and ambient illumination.
But not every decorative fixture needs light everywhere.
Today, G9 LEDs are increasingly used inside small pendants, wall lights, reading lights, mini spots and compact decorative fixtures where the designer wants light to reach a particular surface.
In these applications, the question changes from:
“How many lumens does this G9 produce?”
to:
“Where are those lumens actually going?”
That is where a controlled G9 LED beam angle can make a meaningful difference.

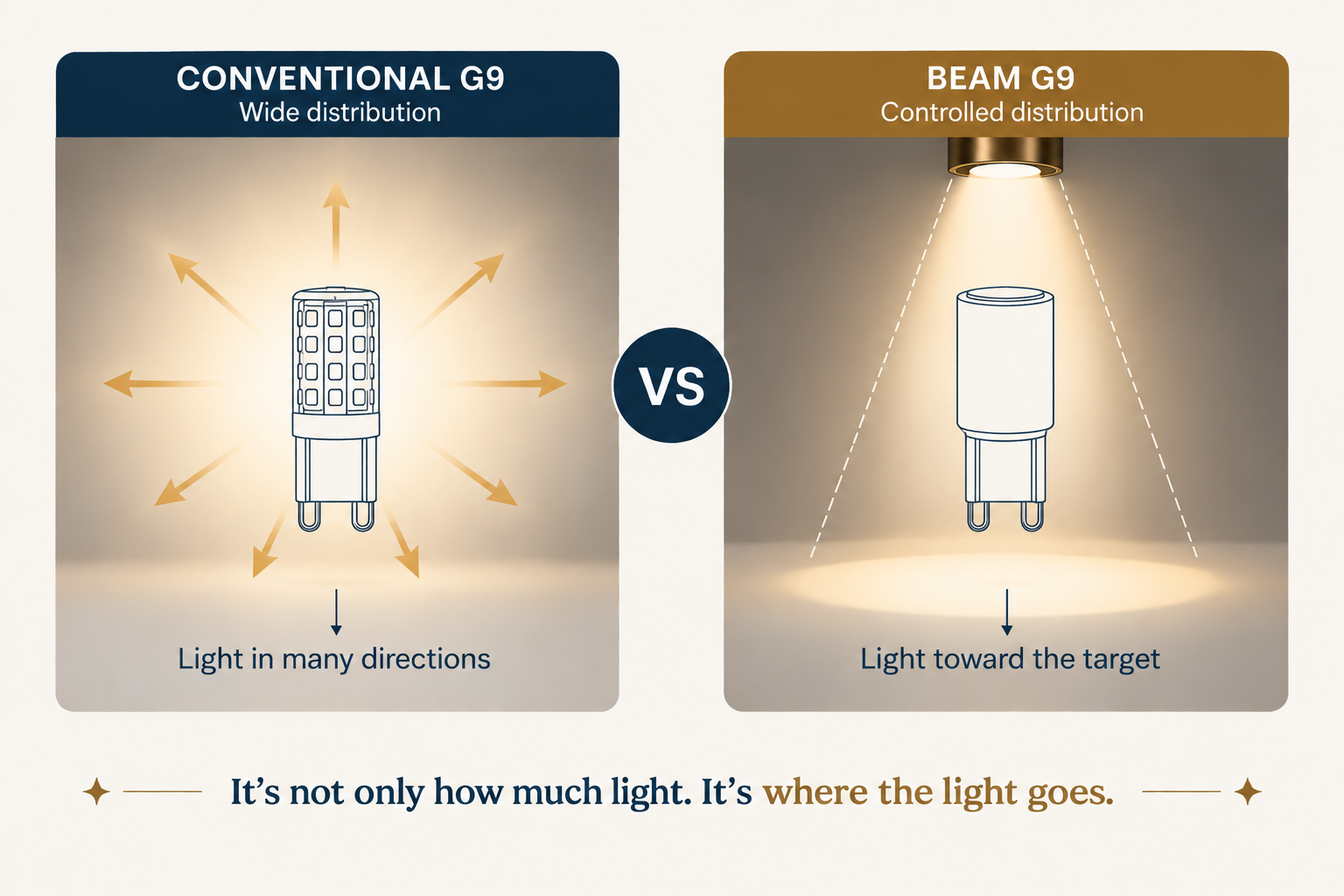

The Hidden Limitation of a Conventional G9 LED
Imagine a small pendant positioned above a table.
The G9 inside produces 400 lumens.
On the specification sheet, 400 lumens may appear sufficient. But inside the actual fixture, some of that light travels downward toward the table, while some travels sideways, upward or into the internal structure of the fixture.
The lamp is producing the expected lumen output.
The fixture may still feel underlit.
Increasing the lamp from 400 to 500 lumens might seem like the obvious solution—but it can also increase power and thermal load without solving the fundamental optical problem.
The problem may simply be uncontrolled light distribution.
A controlled-beam G9 approaches the problem differently:
Instead of producing more light, direct more of the available light toward where it is needed.
This distinction between total light and useful light is especially important in compact decorative fixtures.
.png)
What Does Beam Angle Change?
Beam angle describes how widely a directional light source distributes its light.
A narrower beam concentrates light over a smaller area, while a wider beam spreads it across a larger area.
For a miniature Beam G9, different beam angles can therefore create very different lighting effects.
15° — Focus
A narrow 15° G9 LED beam creates a concentrated pool of light with stronger center intensity.
It can work well where the fixture needs visual emphasis or a relatively small illuminated area.
30° — Balance
A 30° beam maintains directional control while covering a larger area.
For many small decorative fixtures, it can provide a useful balance between focus and coverage.
60° — Coverage
A 60° G9 beam creates a much broader distribution while still controlling the direction of the light.
It can be useful where the designer wants softer, wider illumination without returning to fully omnidirectional distribution.
The important point is that there is no universally “best” beam angle.
15° creates focus. 30° balances focus and coverage. 60° creates wider controlled light.
The right choice depends on the fixture.
Same Lumens. Completely Different Lighting Effects.
One of the most common misunderstandings with directional lighting is assuming that a narrower beam produces more lumens.
It does not necessarily.
Imagine two G9 LEDs with similar total lumen output.
A 15° version concentrates much of that light into a smaller area. The center of the beam therefore appears significantly brighter.
A 60° version distributes the light across a much larger area. The center intensity is lower, but the illuminated area is wider.
This is why lumens alone cannot fully describe the performance of a Beam G9.
For directional lighting, candela is also useful.
Lumens describe the total quantity of visible light emitted.
Candela describes luminous intensity in a particular direction.
So two G9 lamps with similar lumens can create dramatically different results inside the same fixture.
Beam angle changes where the light goes — not simply how much light the lamp produces.
Where Can a Beam G9 Make More Sense?
A Beam G9 is not intended to replace every conventional G9.
If a chandelier needs the lamp to illuminate crystals in every direction, wide distribution may still be exactly what the designer wants.
Controlled beams become more interesting when the fixture itself has a directional purpose.
Pendant Lights — More light can be directed toward the table, counter or surface below rather than into the fixture.
Wall Lights — Controlled distribution can help send light toward a wall, artwork or intended architectural surface.
Reading Lights — The objective is usually to illuminate a task area rather than the entire surrounding space.
Mini Spots — A compact fixture may need directional light but have insufficient space for a larger GU10 or MR16 platform.
Display & Hospitality Fixtures — Controlled light can create stronger visual hierarchy and more intentional pools of illumination.
The common requirement is simple:
The fixture needs light somewhere — not everywhere.
Why a Beam G9 Can Be Interesting When GU10 or MR16 Is Too Large
There is another application where controlled-beam G9 becomes particularly interesting.
A designer may want the optical effect of a small spotlight but have very limited space inside the fixture.
A conventional GU10 or MR16 provides directional light effectively, but its physical dimensions may determine the size and shape of the luminaire.
A miniature directional G9 offers another possibility:
Compact lamp format + controlled beam distribution
This does not mean a Beam G9 replaces GU10 or MR16 in every application. Their optical systems, output levels and applications are different.
But when fixture size is a design constraint, Beam G9 can give designers another optical option.
Don’t Choose 15°, 30° or 60° First
When developing a new fixture, starting with:
“We need a 30° G9.”
may be too early.
The better starting point is the application.
Ask:
Where is the lamp positioned?
What surface needs to be illuminated?
What is the distance to that surface?
How large should the illuminated area be?
How much useful light is required?
Should the effect feel focused or soft?
Distance matters because the beam footprint grows as light travels farther from the source.
The same 30° G9 used at two different mounting distances can therefore produce very different illuminated areas.
A better development sequence is:
Application → Target → Distance → Desired Effect → Beam Angle
not simply:
G9 → 15° / 30° / 60°

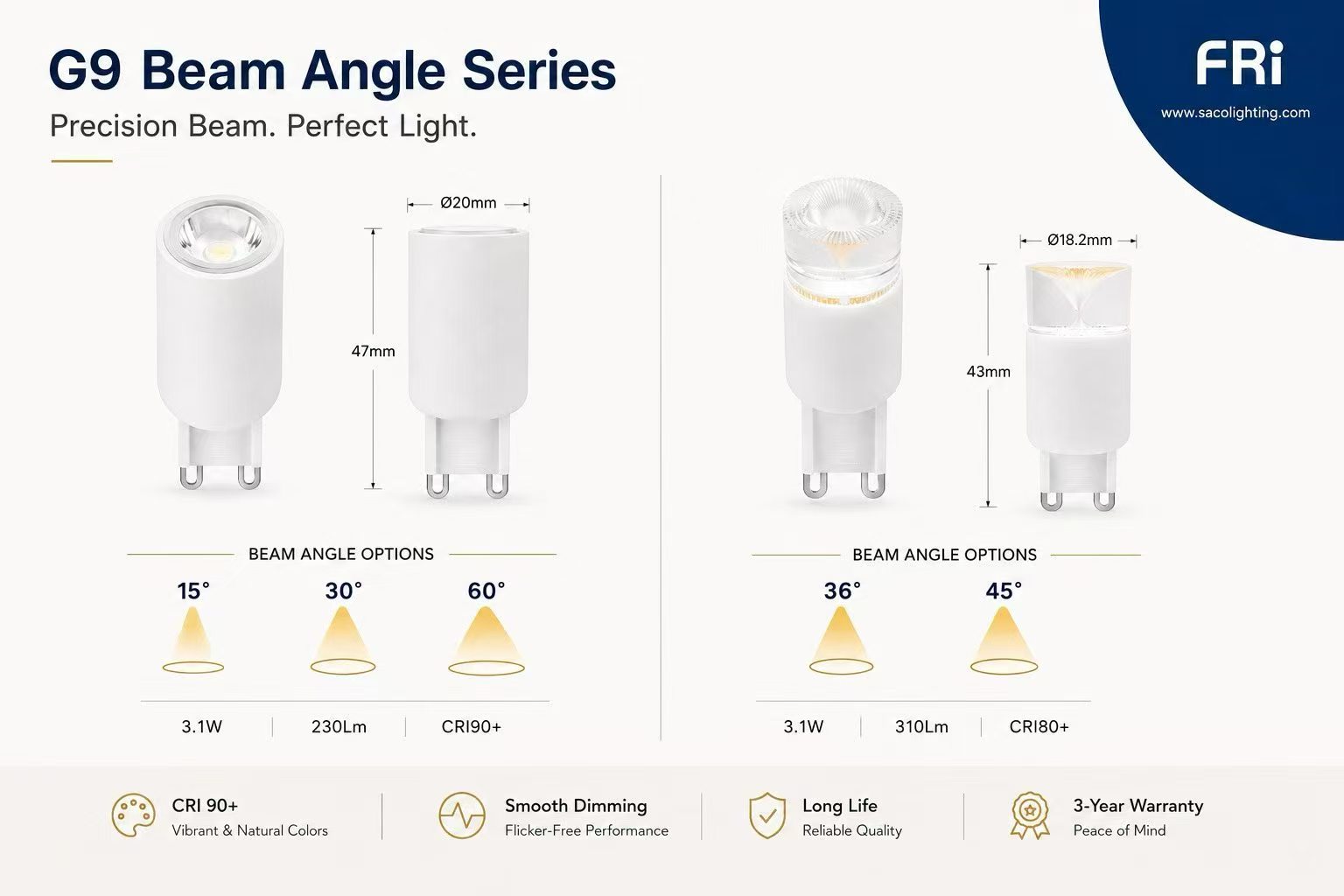

How FRI Approaches Beam G9 Development
FRI developed the Beam G9 LED series for decorative fixtures where conventional wide-distribution G9 lamps cannot create the intended lighting effect.
The platform includes different optical options such as:
15° · 30° · 60°
But offering several beam angles is not the real objective.
The objective is to give fixture designers more control over where the light goes while maintaining the compact G9 format.
For new fixture development, we prefer to understand the application first and then evaluate beam angle together with lumen output, color quality, dimming performance and physical dimensions.
Because a good light source should not only fit inside the fixture.
It should help the fixture create the intended light.
Developing a Fixture That Needs More Controlled Light?
If a conventional G9 provides enough lumens but still does not create the lighting effect you want, the issue may be light distribution rather than light output.
Send us your:
Fixture photo or drawing + target distance + required output + desired lighting effect
FRI can help evaluate whether a 15°, 30° or 60° Beam G9 is a suitable starting point for your fixture.
Don’t start with the beam angle. Start with where you want the light to go.
