Home   >   Products   >   LED Light Bulb   >   E11 E12 E17 LED Bulb
FR-CDL-3.5W-020DIM

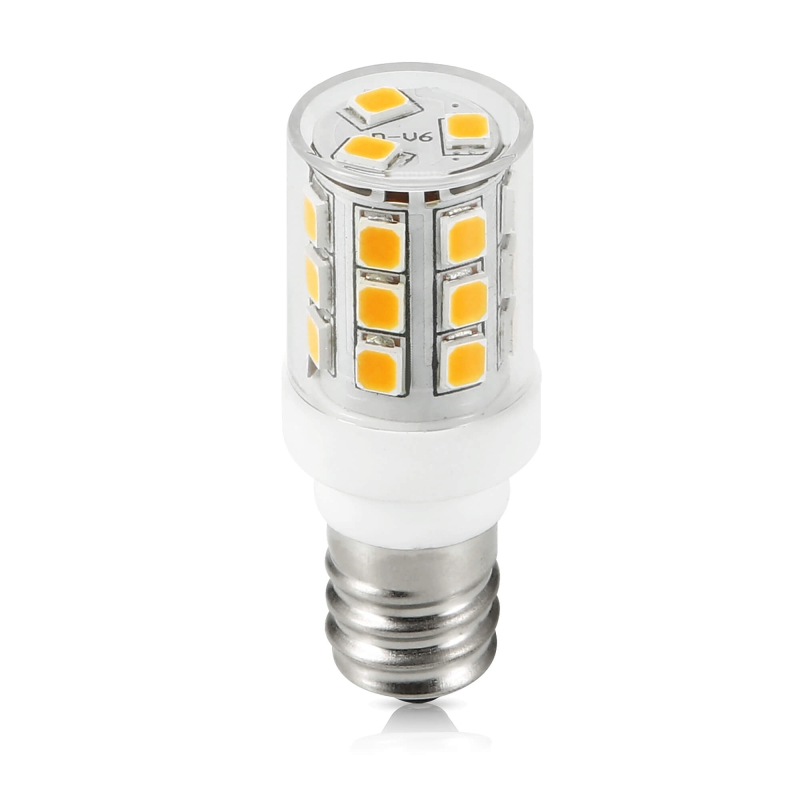

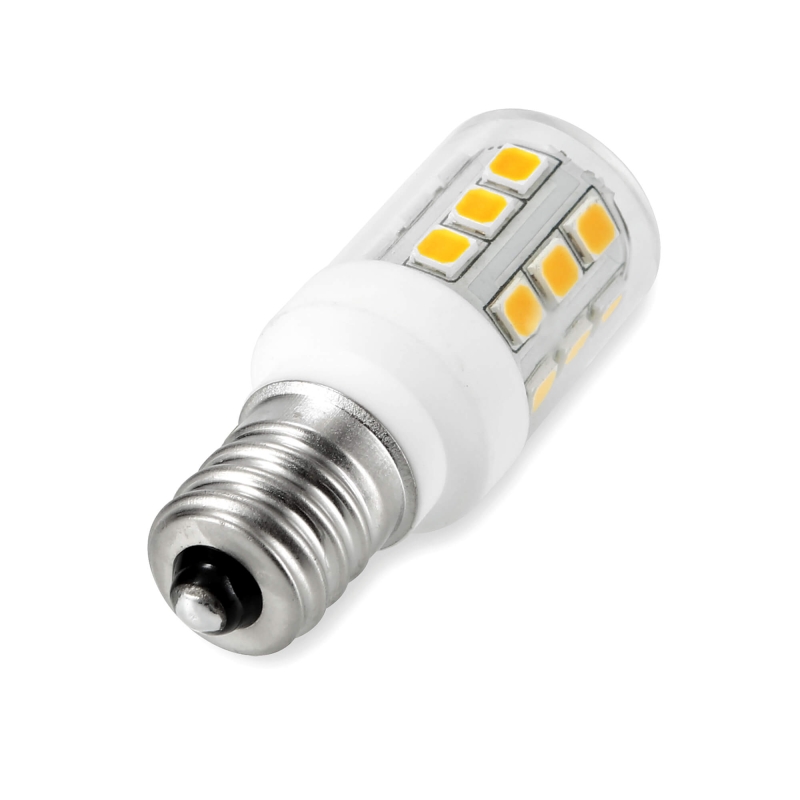

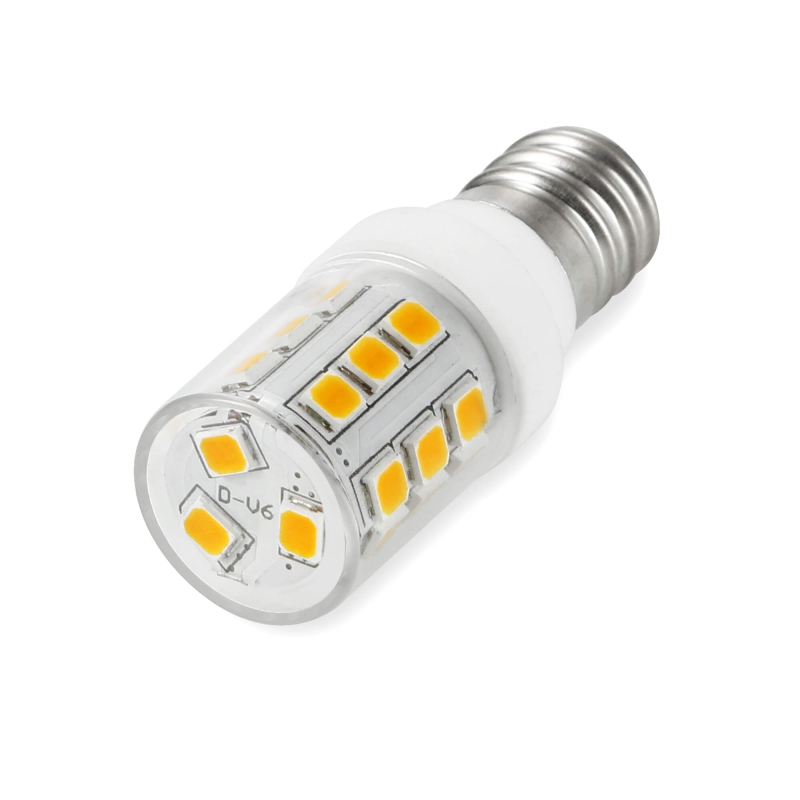

CE ROHS SAA PSE ETL FCC JA8 title20/24 2.5W 260lm Dimmable E11/E12/E14/E17 LED Bulb

Model: FR-CDL-2.5W-005DIM

✓ Base type: E11/E12/E14/E17
✓ Voltage: 110-130V AC/200-240V AC
✓ Wattage: 2.5W
✓ Brightness: 260lm
✓ Dimensions: Ø16.2x 45mm
✓ Flicker: Flicker Free
✓ Color Temperature: 1800-6500K
✓ Dimmable: Yes
✓ SDCM: <4/6
✓ CRI/Ra: 80 / 90 / 95
✓ R9: >0 /50 /90
✓ SVM: <0.4, PstLM: <1

Certificates:

Specifications

General
Model No. FR-CDL-2.5W-005DIM
Voltage(V) AC120/230V
Watt(W) 2.5W
Lumen(Im) 260lm
Dimensions(mm) Ø16.2 x45mm
Weight(g) 10.5g
PF 0.9
CCT(k) 1800-6500K
CRI 80/90/95
SDCM 4/6
