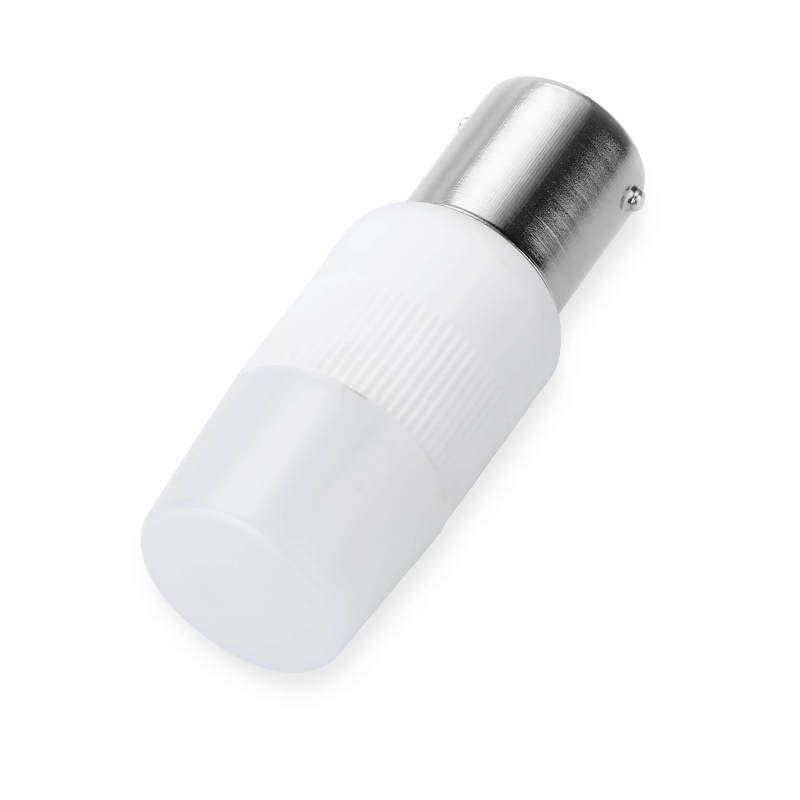

DC/AC12V DC10-40V 4.5W 400lm Dimmable BA15 LED Bulb
Model: FR-BA15-4.5W-022
✓ Base type: BA15
✓ Voltage: AC/DC12V
✓ Wattage: 4.2W
✓ Brightness: 400lm
✓ Dimensions: Ø20 x 55.2mm
✓ Flicker: Flicker Free
✓ Color Temperature: 1800-6500K
✓ Dimmable: Yes
✓ SDCM: <4/6
✓ CRI/Ra: 80 / 90 / 95
✓ R9: >0 /50 /90
✓ SVM: <0.4, PstLM: <1
Certificates:
Specifications
| General | |
| Model No. | FR-BA15-4.5W-022 |
| Voltage(V) | AC/DC12V |
| Watt(W) | 4.2W |
| Lumen(Im) | 400lm |
| Dimensions(mm) | Ø20 x 55.2mm |
| Weight(g) | 16g |
| PF | 0.7 |
| CCT(k) | 1800-6500K |
| CRI | 80/90/95 |
| SDCM | 4/6 |
Related Products
| PIC | Model | Voltage (V) |
Watt (W) |
Lumen (Im) |
Dimensions (mm) |
Weight (g) |
PF | CCT (k) |
CRI | SDCM |
 |
FR-BA15-2.5W-011 | AC/DC12V | 2.4W | 250lm | Ø16.2x 48.5mm | 10.9g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-2.5W-004 | AC/DC12V | 2.5W | 270lm | Ø20 x 40mm | 11g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-2.5W-003 | AC/DC12V | 2.5W | 270lm | Ø20 x 45mm | 15.5g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-3W-001 | AC/DC12V | 2.8W | 340lm | Ø17.5 x 52mm | 15g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-3.5W-001 | AC/DC12V | 3.3W | 350lm | Ø17.5 x 52mm | 15.5g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-4W-001 | AC/DC12V | 3.8W | 380lm | Ø17 x 54.5mm | 15.5g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-4.5W-022 | AC/DC12V | 4.2W | 400lm | Ø20 x 55.2mm | 16g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
 |
FR-BA15-5W-001 | AC/DC12V | 4.2W | 530lm | Ø21 x61.5mm | 23.3g | 0.7 | 1800-6500K | 80/90/95 | 4/6 |
