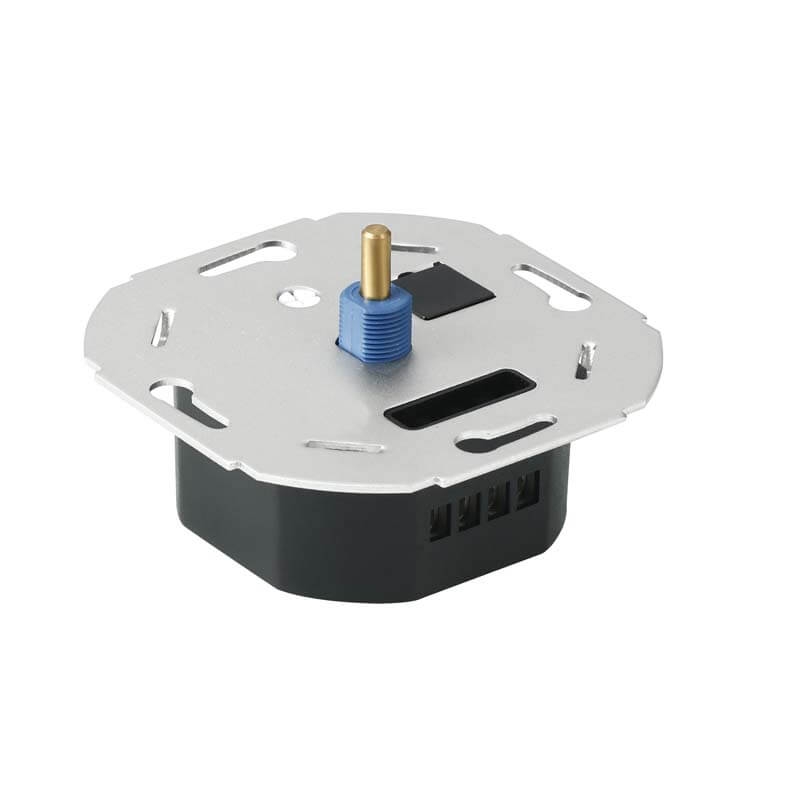

10-500W universal trailing edge /leading edge Wall rotary LED dimmer
Model: QE-PA-500W-001
✓ Voltage:200-240VAC 60Hz
✓ LED Load: 2-250W
✓ Halo, Incandescent Load: 10-500W
✓ Dim Type:R.C- trailing edge dimmer
✓ Soft start to protect and longer bulb life span
✓ Auto activate overload /over heat protect
✓ Memory position for the last setting
✓ Smooth dimming function without flashing or buzzing
✓ 0-100% Deep dimming range (support debug service for your bulb)
✓ Great compatibility, works well with 90% dimmable bulbs in market .
✓ Intertek CE( EMC LVD) RoHS Reach Approvals
Certificates:
Features
Soft Start
Gradual turning on of an electronic power supply to avoid stressing the components by the sudden current or voltage surges associated with the initial charging of capacitors and transformers，which will friendly protect bulb ,longer bulb lifespan.
Specifications
| General | |
| Model No. | QE-PA-500W-001 |
| Product Name | 10-500W universal trailing edge /leading edge Wall rotary LED dimmer |
| Hal/INC Load Watt | 10-500W |
| LED Load Watt | 2-250W@PF0.5 /2-450W@PF0.9 |
| Dimming Type | R.C- trailing edge |
| Protect Function | Soft Start/Overheat/Over temperature Protect |
| Error Indicator | None |
| Body Material | Aluminum |
| Product Size | L 70.6 x W 70.6 x H 43.0 mm |
| Color | Sliver/Customize Color |
| Net Weight | 48.3g |
| Warranty | 3years |
